LifeSmart Polar Switch

Polar Switch

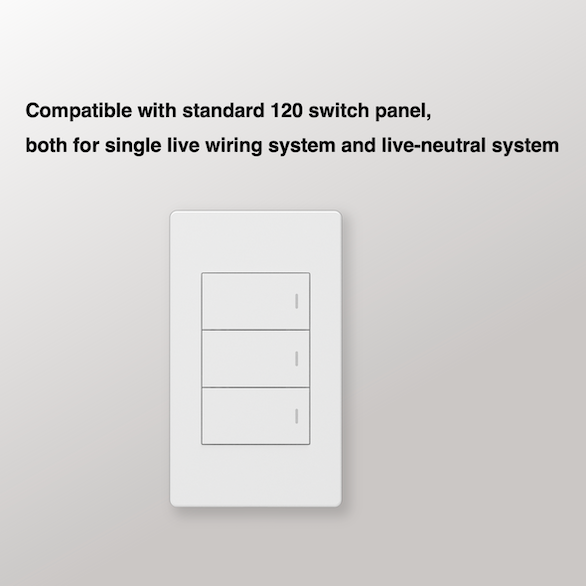

Independent power supply, perfect solution for 120 live-only wiring switches.

Pollar Switch adopts extremely low power consumption technology and independent power supply. It supports single live line, neutral and live line and low direct current (≤ 30V). It eliminates the flicker when a traditional single live line switch is connected to a low power light bulb, providing an easy solution for installation and use.

PRODUCT DESCRIPTION

Multiple control ways

Physical switch control. Multiple design styles conform to different decoration styles
App remote control. Easy to control switch or swithes (switch group) on APP
Central panel control. Be able to added into Nature and Nature mini series’s screen to use
Voice control. Compatible with Apple Homekit, Amazon Alexa

Powerful APP functions

Schedule to turn on/off
Trigger a scene or control other devices (not just switch) wirelessly
Automation to realize double control, multiple control, sensor condition ect.

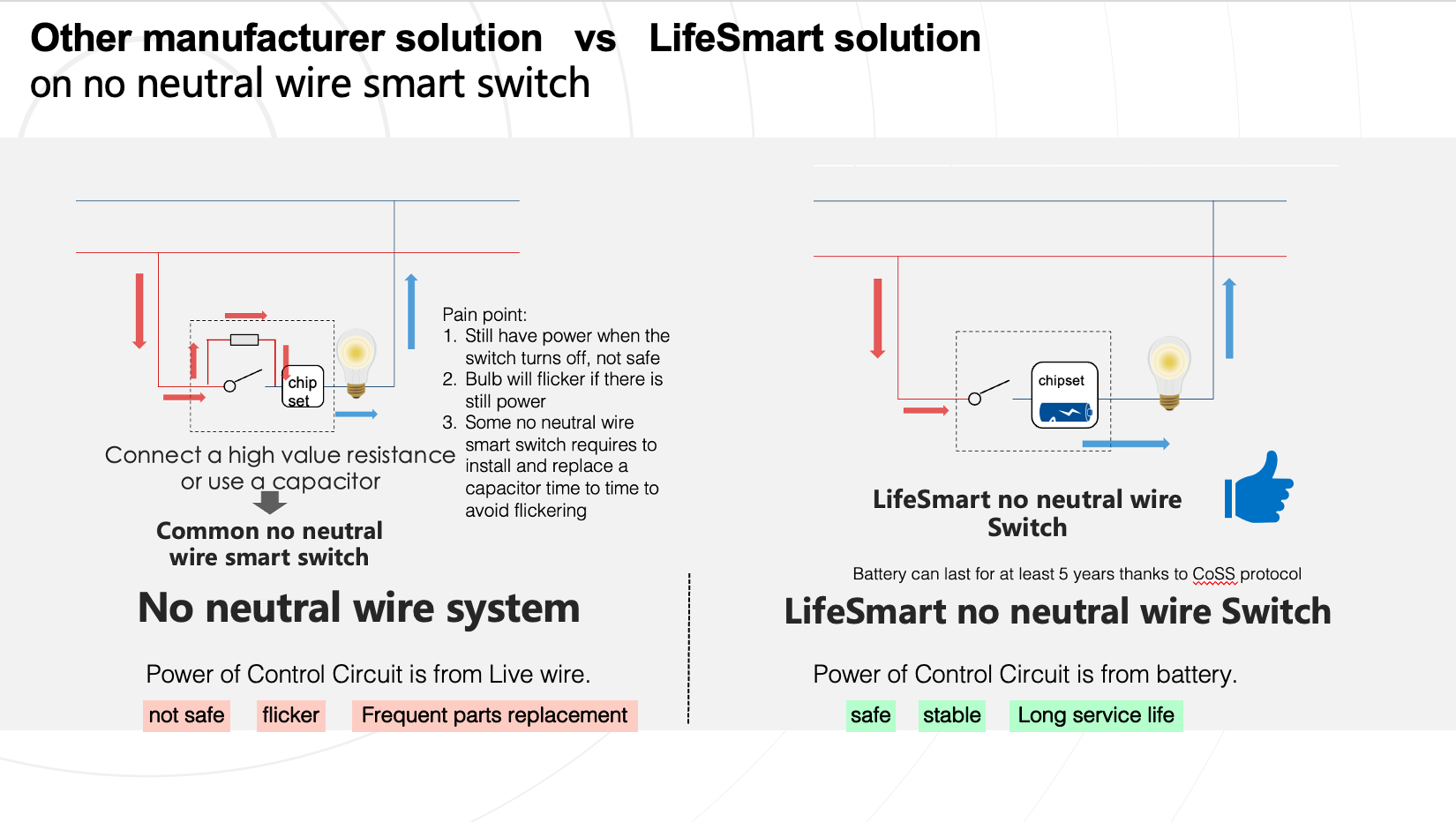

Revolutionary solution

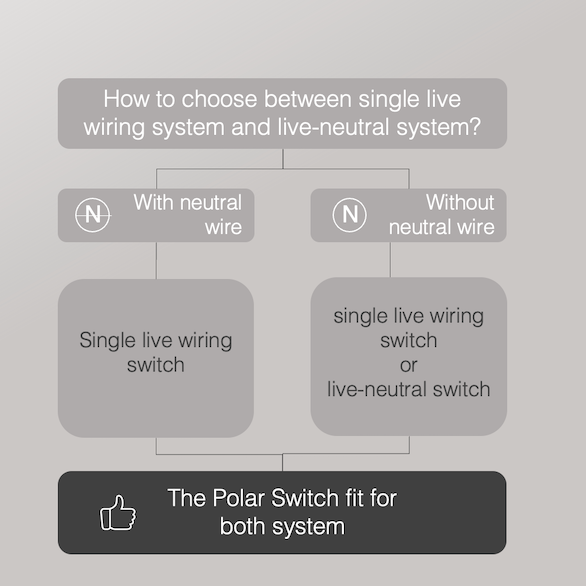

Revolutionary no neutral wire solution, eradicates flicker issue

FEATURES

Polar Switch

No flicker, safe and stable
No need for external wiring
Dual control, multiple control
LED indicator

SPECIFICATION

General

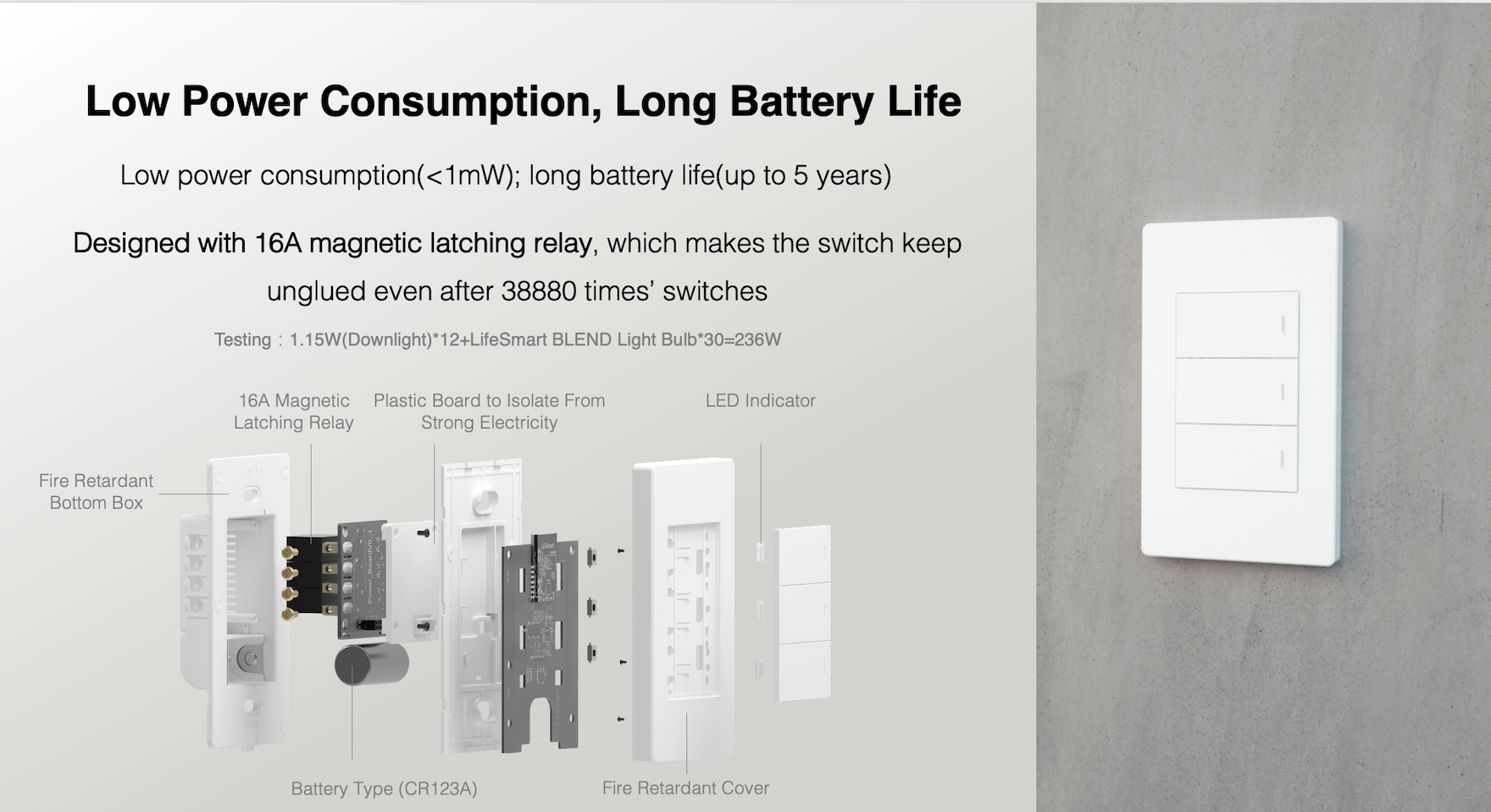

Control Unit	16A magnetic latching relay
Operating Temperature	-5~45°C
Operating Humidity	5~90%
Power Supply	AC 100-240V 50/60Hz
Static Consumption	<1mW
Maximum Overload	Resistive load: 500W (one way) Capacitive/Reductive load: 200W (one way)
Battery Type	ER18505M(CR17505、ER17505)
Battery Life	5 years

Construction
Color	White

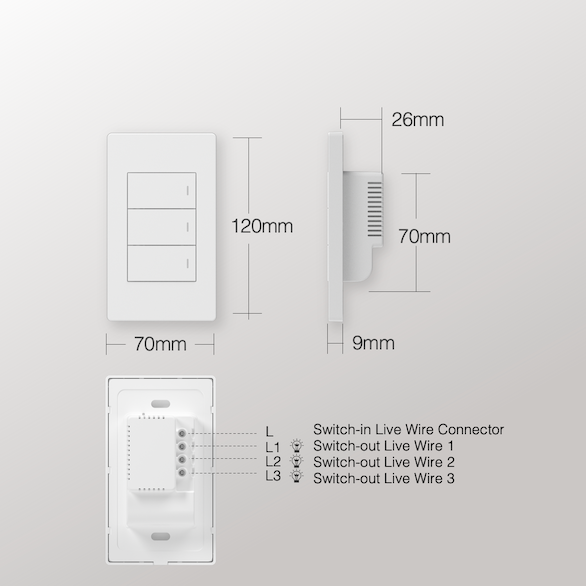

Dimension	1207035mm
Casing	ABS+PC

Radio
Radio Protocol	CoSS
Signal Range (Open Field)	200m

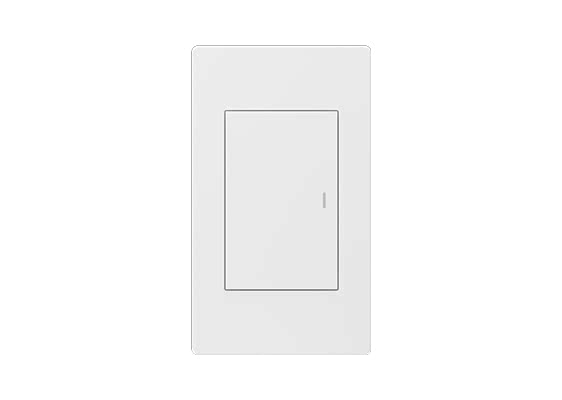

Polar Switch (1 way)
Model Number	LS211
Wiring	Live only / Live+neutral
Weight	141g

Polar Switch (2 way)
Model Number	LS212
Wiring	Live only / Live+neutral
Weight	152g

Polar Switch (3 way)
Model Number	LS213
Wiring	Live only / Live+neutral
Weight	163g

Polar Multi-control Accessory
Model Number	LS214
Wiring	No wiring
Weight	120g
