Starry Switch

Independent power supply, perfect solution for live only wiring


Lifesmart's Starry Switch adopts extremely low power consumption technology, works independently without external power. It supports single live line, null and live line, and low direct current, and also can te used as a passive switch. It eliminates the flicker when a traditional single live line switch is connected to an ow power light bulb, providing an easy solution for installation and use.


Lifesmart's Starry Switch also supports two-way communication and mobile control. You can manage it through our app whenever and wherever It can be paired with other smart devices such as Cube Motion Sensor and Cube Door/Window Sensor, to trigger Smart Scenes like light on when you come home and lights o when you leave the house.


FEATURES
  • Human engineering design for comfortable touching

  • No flicker, safe and stable

  • No need for external wiring Dual control, multiple control

SPECIFICATION
 General
Control Unit16A magnetic latching relay
Operating Temperature
-5~45°C
Operating Humidity
5~90%
Power SupplyDC 5V-30V Or AC 90-250V
Static Consumption<1mW
Maximum Overload

Resistive load: 500W per channel

Inductive/Capacitive load:200W per channel

DC load: 30V/5A

Battery TypeER18505M(substitute:CR17505orER17505)
Battery Life5 years


 Radio
Radio ProtocolCoSS
Signal Range (Open Field)

200m


 Construction

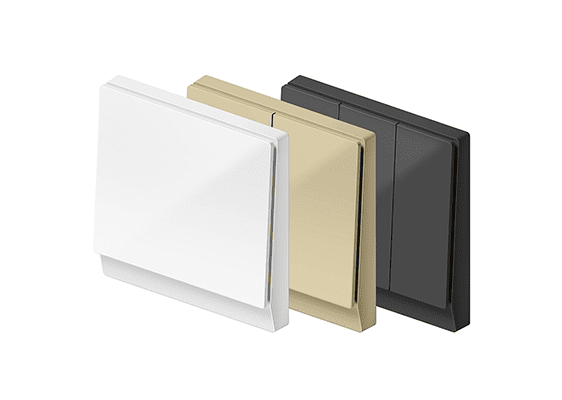

ColorWhite / Black / Golden / Grey
Dimension86*86*39mm
CasingABS+PC
 Starry Switch(1 way)
Model NumberLS185WH/BL/GD/GR
Wiring

Live only / Live+neutral

Weight126g


 Starry Switch(2 way)
Model NumberLS186WH/BL/GD/GR
Wiring

Live only / Live+neutral

Weight135g

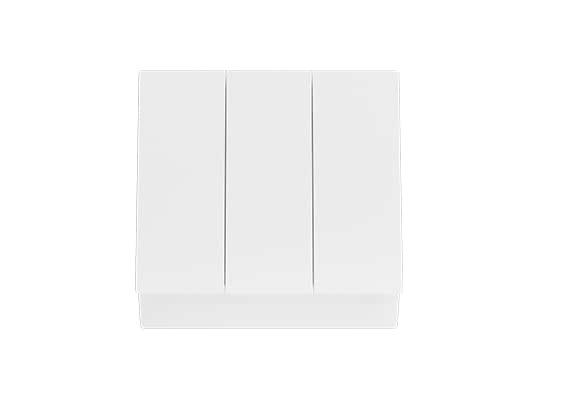

 Starry Switch(3 way)
Model NumberLS187WH/BL/GD/GR
Wiring

Live only / Live+neutral

Weight144g


 Dual Control Only
Model NumberLS188WH/BL/GD/GR
Wiring

No wiring

Weight110g

Starry Switch
