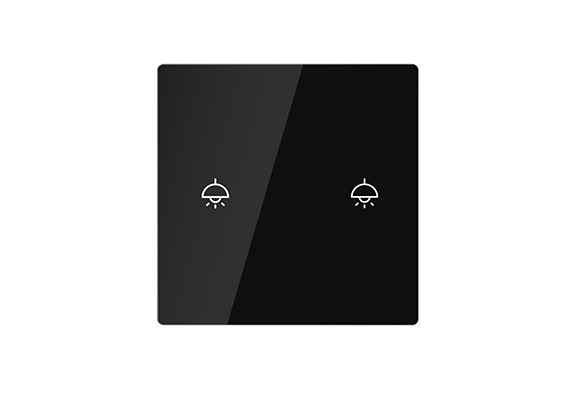

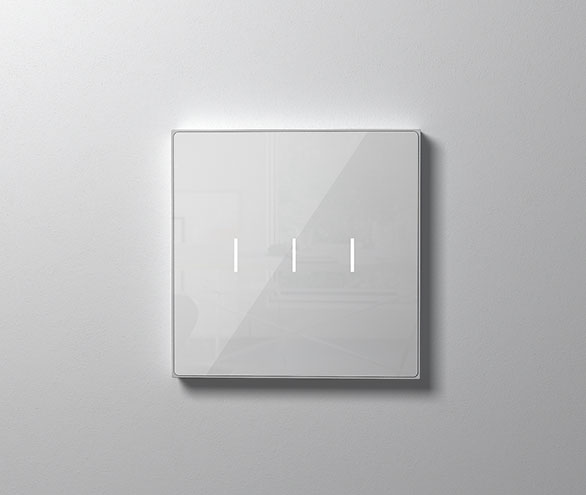

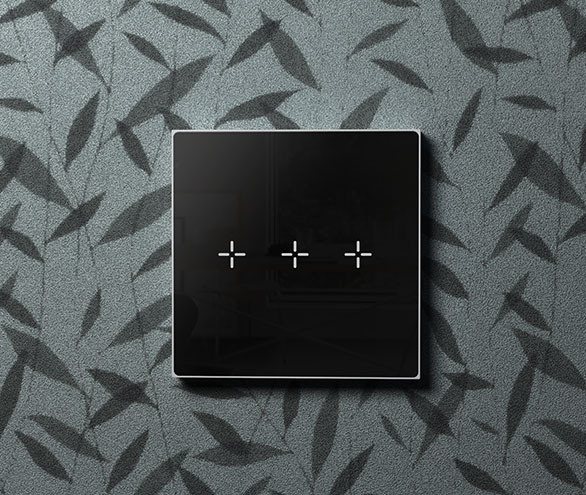

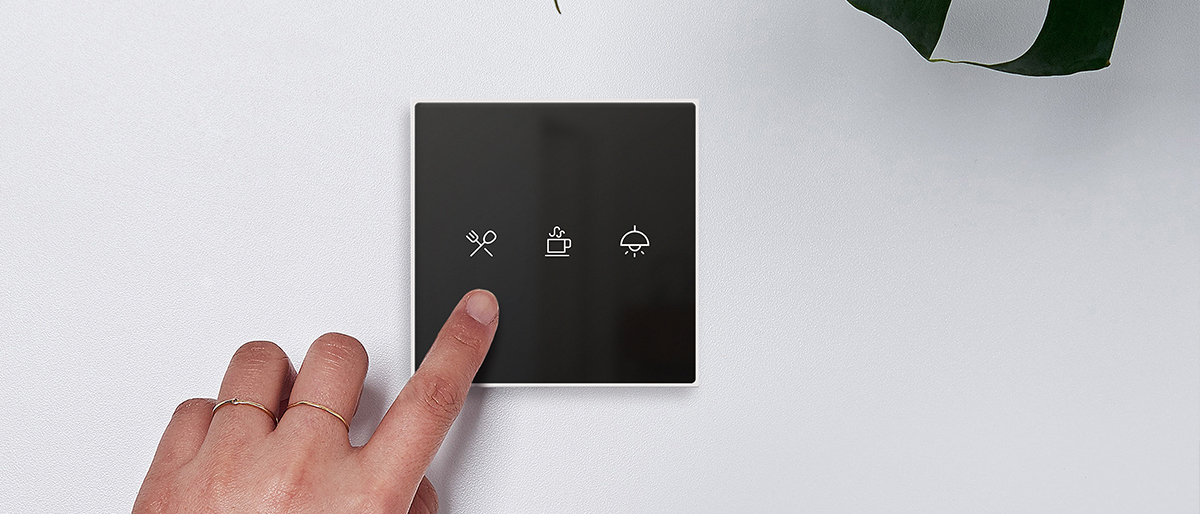

The Nature switch adopts Touch Pro technology and brings ultimate touch experience for lighting. It is also designed with DIY Colorful LED indicator, you can turn on the light easily in the dark. The cover adopts tempered glass with oleophobic coating, which is wear resistant and easy for cleaning & maintenance.
Simple modern design, jade-like touch
Adopts Touch Pro technology and brings ultimate touch experience
Wear-resistant and easy to clean with toughened glass surface
Customized 16 million colors indicator light
Dual control, multiple control
| General | |
| Wiring | Live+nuetral |
| Control Unit | 16A magnetic latching relay |
| Operating Temperature | -5~45°C |
| Operating Humidity | 5~90% |
| Power Supply | AC 100-240V 50/60Hz |
| Static Consumption | <1.5W |
| Maximum Overload | Resistive load: 500W per channel Inductive/Capacitive load: 200W per channel |
| Indicator | 16Million colors |
| Construction | |

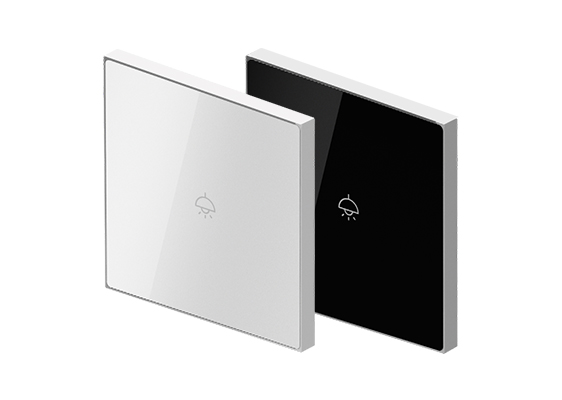

| Color | White glass+White frame/ Black glass+White frame |
| Dimension | 86*86*36mm |
| Casing | Cover: PC Front panel: glass |
| Nature Switch (1 way) | |
| Model Number | LS220-WH1, LS220-WW1 |
| Weight | 126g |
| Nature Switch (2 way) | |
| Model Number | LS220-WH2, LS220-WW2 |
| Weight | 138g |
| Nature Switch (3 way) | |
| Model Number | LS220-WH3, LS220-WW3 |
| Weight | 150g |
| Radio | |
| Radio Protocol | CoSS |
| Signal Range (Open Field) | 200m |
