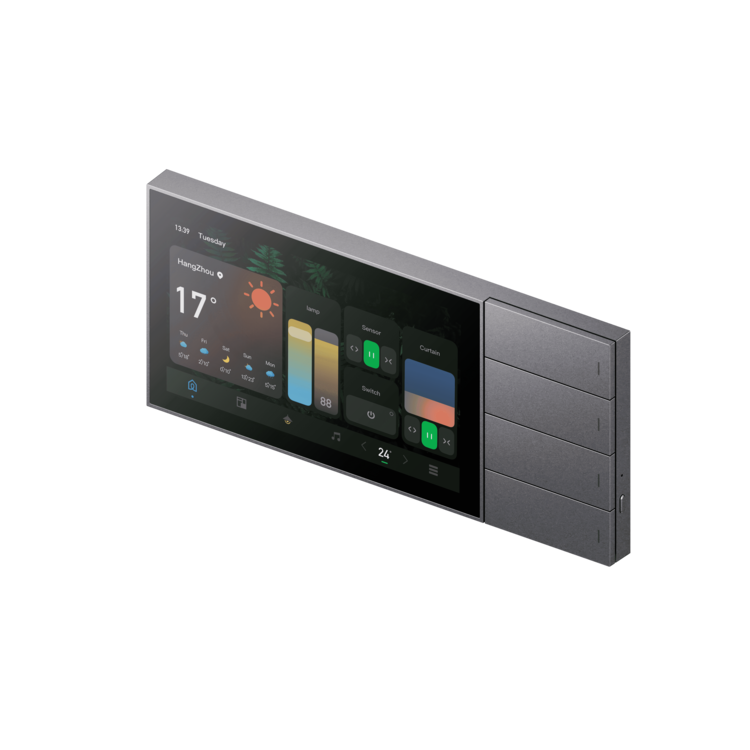

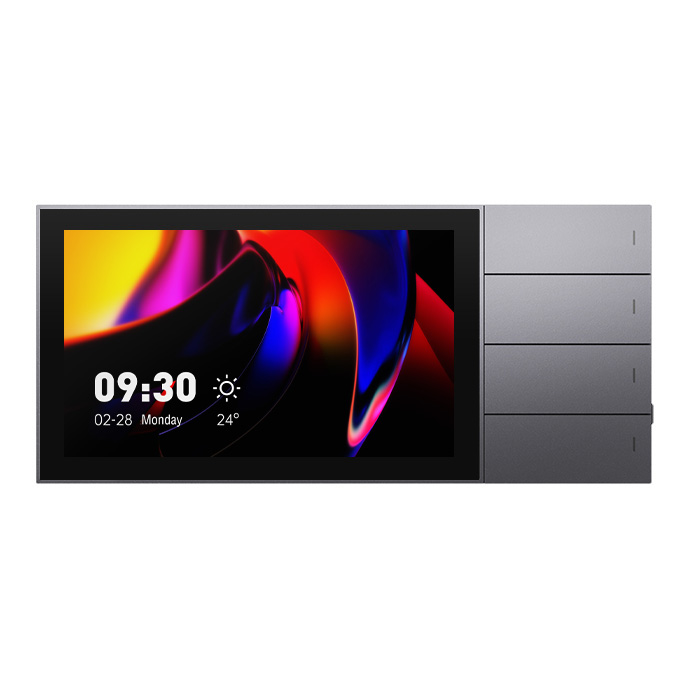

Nature 7 PRO

Full-screen Control Panel and a Smart Gateway

7-inch High definition touch screen
Configurable built-in menu to meet your needs

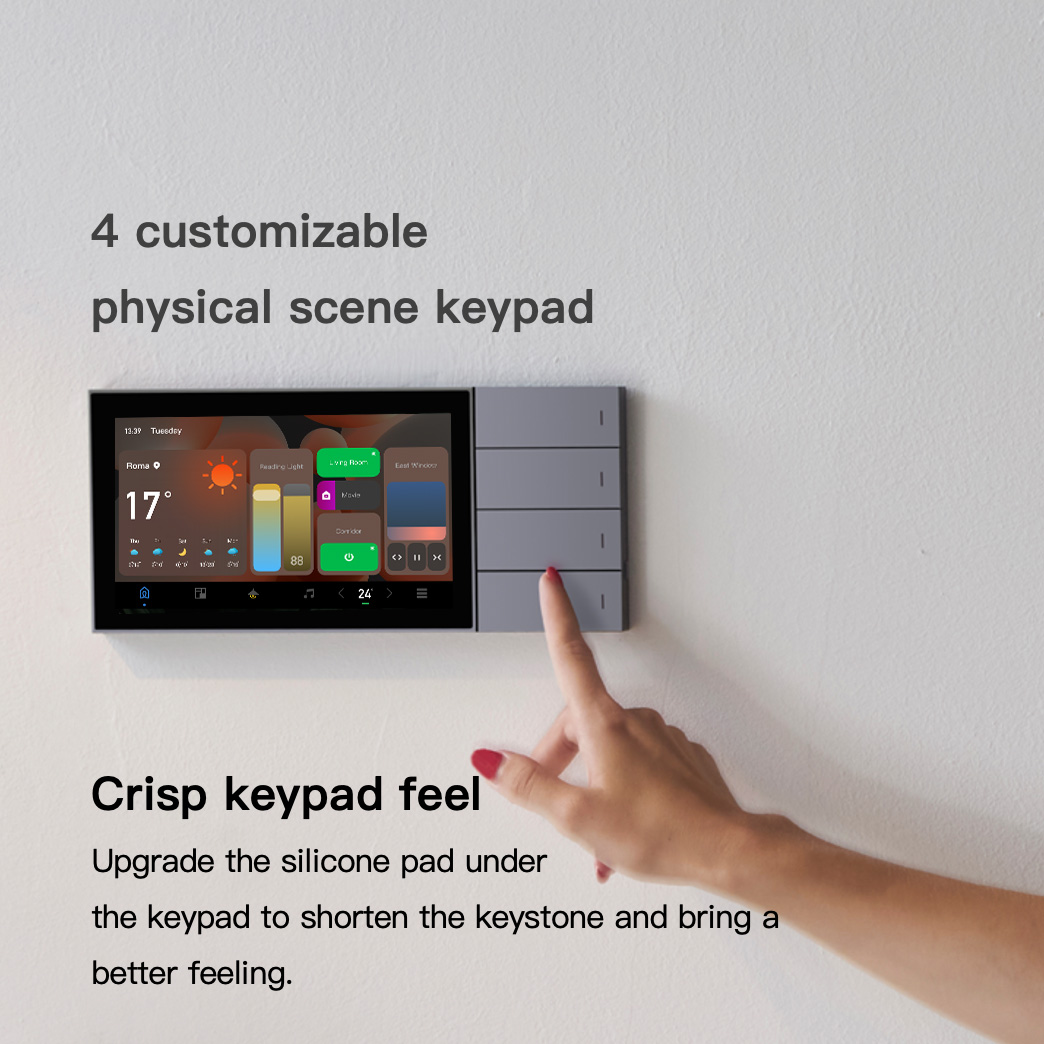

Customizable physical buttons to switch scenes
Works as a gateway
Built-in speaker
AF coating
PoE power supply
Android 11 OS to ensure low-power and stable operation
Supports multiple protocols including CoSS, Zigbee, Wi-Fi

PRODUCT DESCRIPTION

A full-screen control panel incorporating all intelligent control features, Nature 7 PRO enables control of various smart home devices and shifting between different smart scenes like “Away”, “Sleep,” “Movie or ”Dinner“. In particular, using Nature 7 PRO, a user can accurately control the degree to which a curtain opens and closes. Tune the brightness and color of a lamp or adjust the temperature of an air conditioner. Enjoying a truly smart life. The wall-embedded intelligent panel can be easily integrated into homes' styling with 7-inch touch panel and standard 86mm base. It is not only a personal smart housekeeper at your fingertip but also a smart property terminal within your reach.

FEATURES

Smart Home Devices Management and Control ｜The built-in gateway makes it easy to add, manage and control your smart home devices via a touch panel. Just one click to switch between scenes andinitiate device coordination. All the LifeSmart CoSS products can be added to Nature 7 PRO, and customers can control the curtain, shutter, light, HVAC panel, and also SONOS music box.
User-friendly Software Design ｜ Supports one-key pairing, UI style switching, weather details checking, smart home devices control, smart scenes control, etc. The simple operation and neat UI are easy enough for customers to become skillful on using.
Trigger scenes with a tap ｜ Allows you to set scenes, where devices coordinates to implement your commands.
Local Control｜ Even if the Internet is interrupted, device control and device linkage can still work normally in the LAN.

SPECIFICATION

General
Model Number	LS227

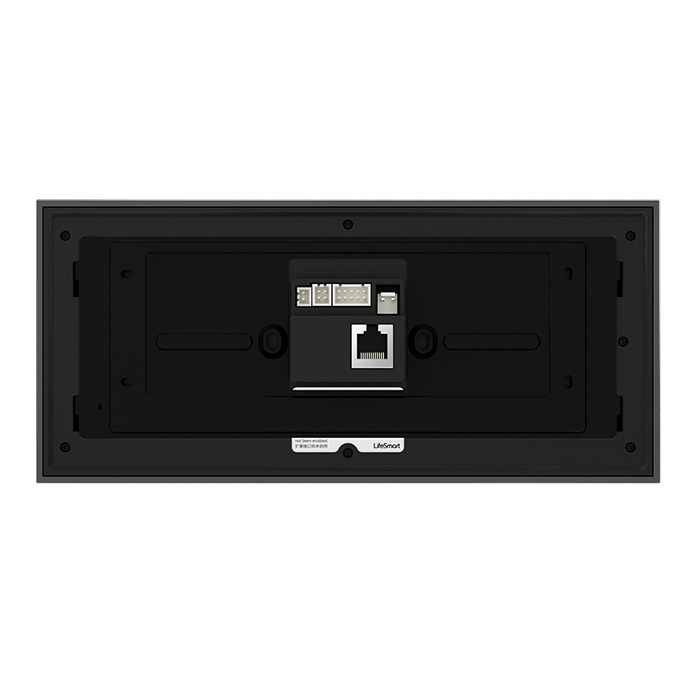

Installation	Detachable bracket
Operating Temperature	-5~45℃
Operating Humidity	5~90%
Network	LAN*1+Wi-Fi
Screen	7 inch
Resolution	1024*600(IPS)
Operation System	Android 11
Power Supply	DC 12V，PoE 48V
Microphone	Yes
Speaker	Yes
CPU	4 core ARM
Button	Scene button*4，power button

Radio
Radio Protocol	Wi-Fi/CoSS/Zigbee/Bluetooth
Radio Frequency	CoSS:433MHz Others: 2.4GHz
Signal Range(Open Field)	CoSS: 300m Others: 50m

Construction
Color	Grey / White

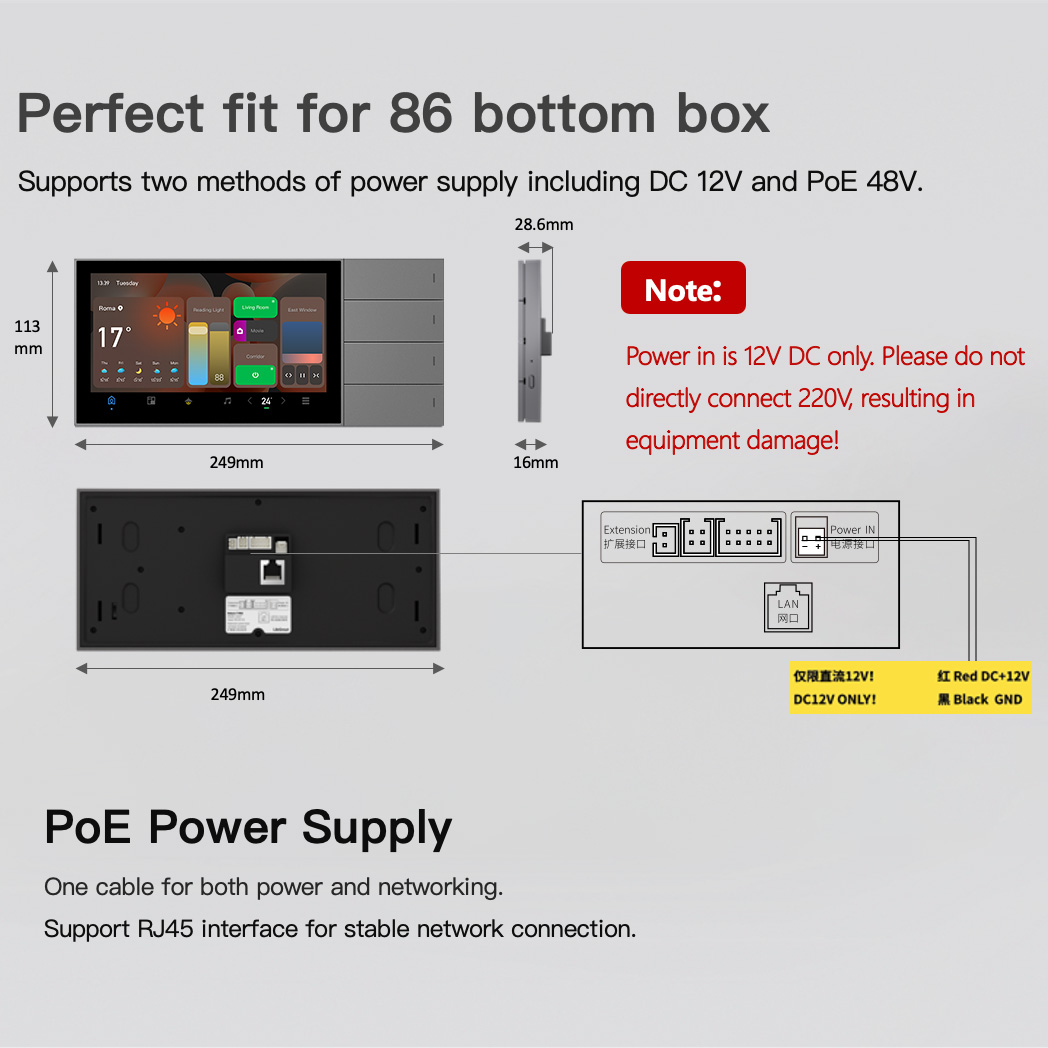

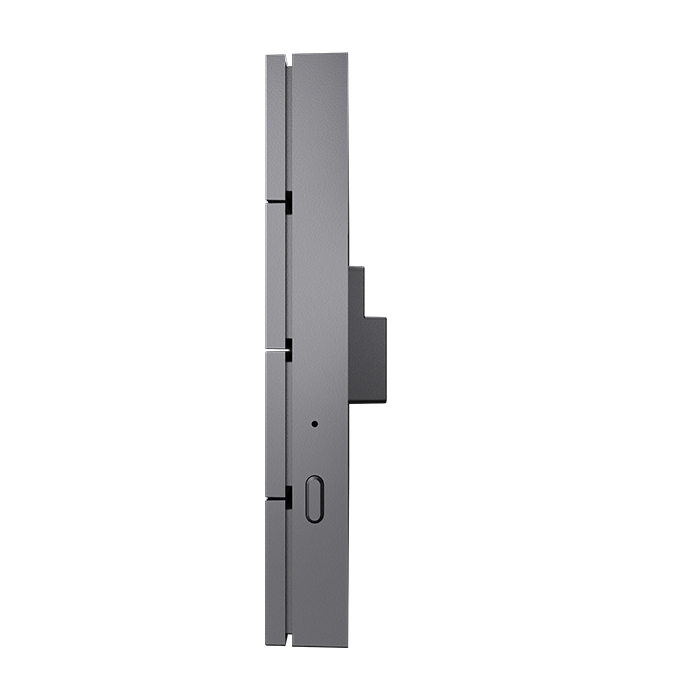

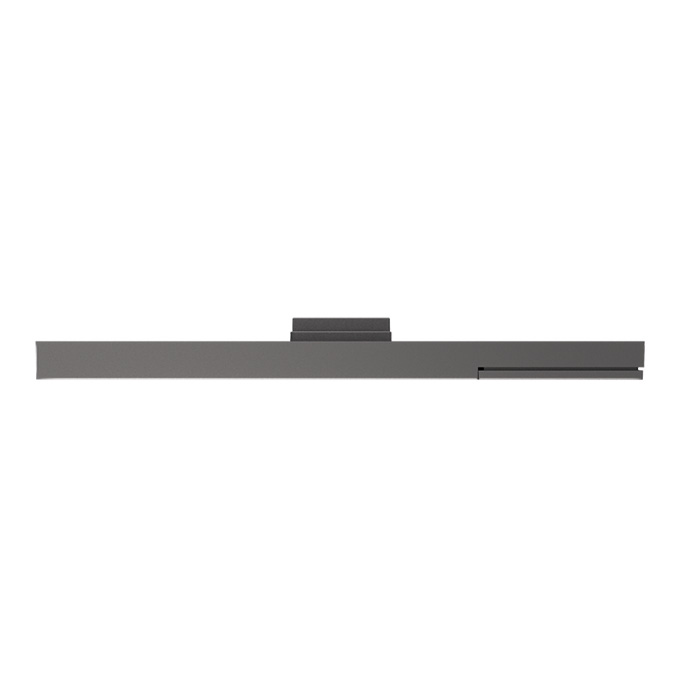

Dimension	Outside the wall:24911316mm; Whole product:24911328.6mm;
Casing	PC
Weight	410g(Bare metal) 525g(Whole product)
