Nature

All-in-one smart control panel

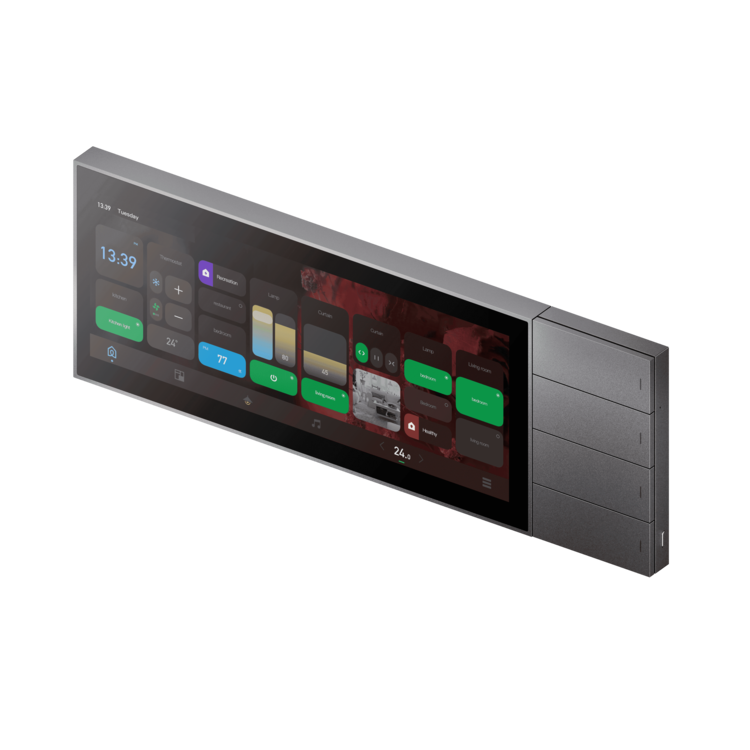

LifeSmart Nature is a Metal frame all-in-one smart control center. It’s designed with a Colorful UI, 4 customizable physical scene buttons, and a 10.25 “high-definition touch screen to enjoy wonderful HCI (human-computer interaction). It could control smart devices like lighting switches, dimmer, door locks, curtain motors, air conditioners, SONOS, cameras… It’s also an intercom, compatible with Akuvox and Dahua door stations.

Download Instructions Next Product

FEATURES

Metal frame, more advanced and fuller of technology sense
Colorful UI and quick control bar for the ultimate operation experience
Customizable physical keypads to quickly switch scenes
No limit to the number of devices that can be controlled on the panel
Support video Intercom, compatible with Akuvox, Dahua door stations

SPECIFICATION

General
Model Number	LS148
Installation	In-wall concealed with pre-embedded back box(standard )
Operating Temperature	-5~45℃
Operating Humidity	5~90%
Network	Wi-Fi 2.4GHz/ Ethernet
Power Consumption	<20W

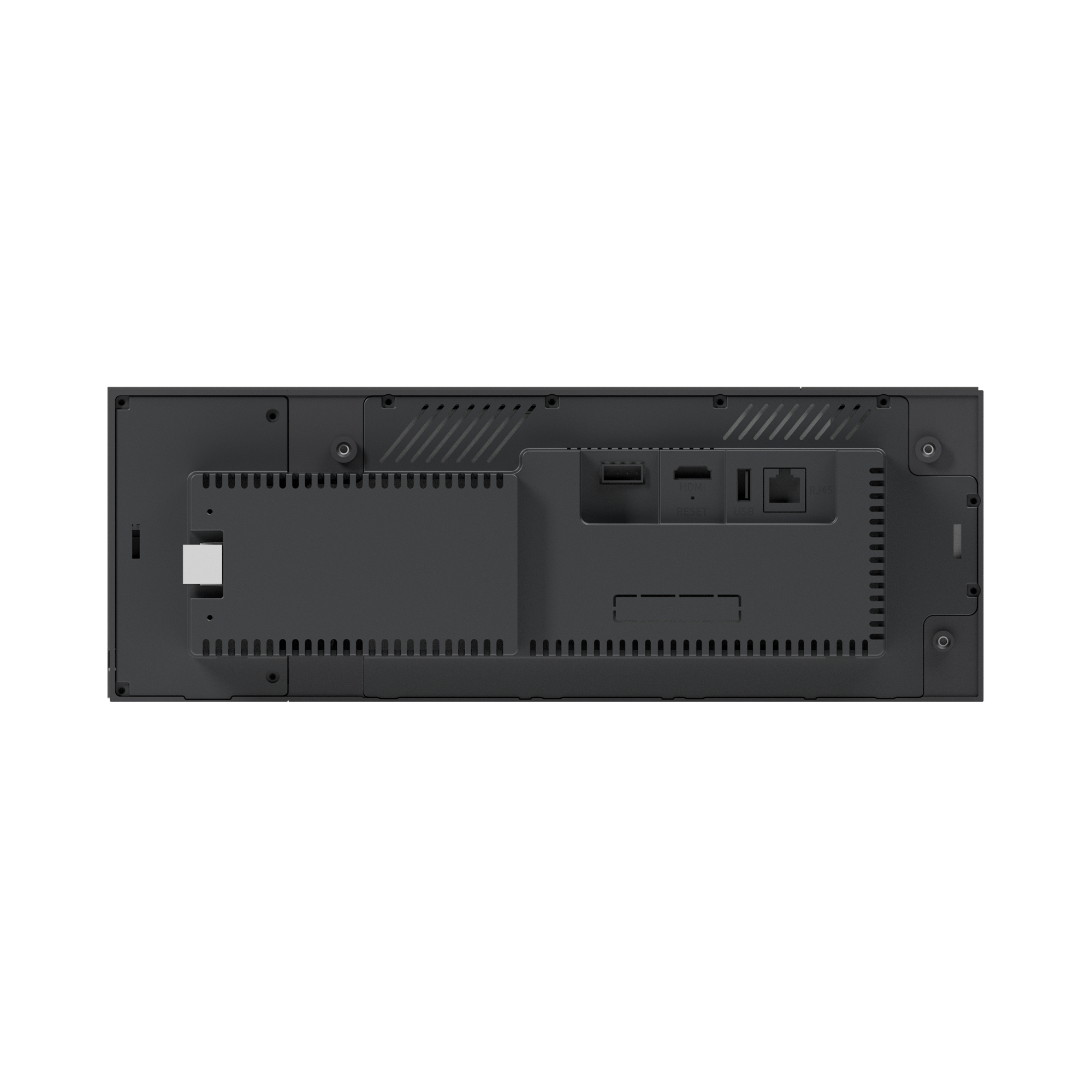

Interface	Live/Neutral/Earth wire in; Ethernet RJ45; HDMI in; USB
Button	Customizable scene-switch button×4 Power button
Screen	10.25 inch touch screen
Resolution	1920×720
CPU	4 Core ARM
Power Supply	AC 100-240V 50/60Hz
RAM	2GB
Operating System	Android 5.1
Bluetooth	Yes (Bluetooth 4.2)
Speaker	Yes
Microphone	Yes

Construction
Color	Matte grey
Dimension	Exposed dimension: 34212216mm Backbox dimension: 33511470mm
Weight	1260g(panel only)
Casing	Aircraft aluminum
