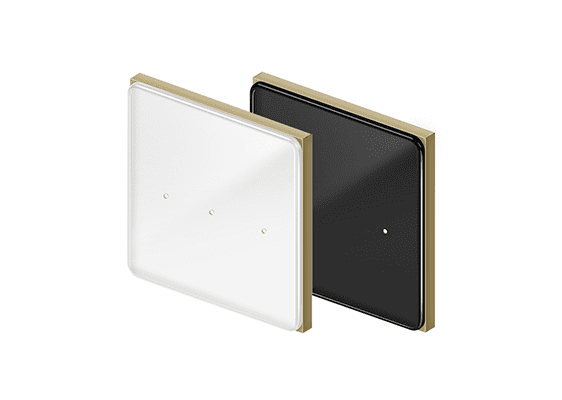

The Moonstone switch is made of 2.5D glass material, which has a good hand feel, thick glass brings a heavy safety texture. A 3D vibration motor brings precise control feedback.
Simple modern design, jade-like touch
Vibration interactions
Customized 16 million colors indicator light
Dual control, multiple control
| General | |
| Wiring | Live+nuetral |
| Control Unit | 10A magnetic latching relay |
| Operating Temperature | -5~45°C |
| Operating Humidity | 5~90% |
| Power Supply | AC 100-240V 50/60Hz |
| Static Consumption | <1.5W |
| Maximum Overload | Resistive load: 500W per channel Inductive/Capacitive load: 200W per channel |
| Indicator | 16Million colors |
| Construction | |
| Color | White glass+White frame/ Black glass+White frame |
| Dimension | 120*72*35mm |
| Casing | Bottom cover: P Ctop cover: ABS+PC front panel: glass |
| Moonstone Switch 120 (1 way) | |
| Model Number | LS123WH/BL |
| Weight | 151g |
| Moonstone Switch 120 (2 way) | |
| Model Number | LS124WH/BL |
| Weight | 158g |
| Moonstone Switch 120 (3 way) | |
| Model Number | LS125WH/BL |
| Weight | 167g |
| Radio | |
| Radio Protocol | CoSS |
| Signal Range (Open Field) | 200m |
